ADR-008: Assembled document output via asciidoctor docbook pipeline

Status: accepted
Deciders: Richard Attermeyer
Date: 2026-08-11

Context and Problem Statement

The project generates PDF output from assembled AsciiDoc pages using @antora/pdf-extension + asciidoctor-pdf. Regulatory use cases (IEC 62304) require DOCX as an alternate format. The assembler infrastructure (@antora/assembler) combines pages into a single AsciiDoc document and invokes a build.command to convert it.

Two design questions needed answers:

  1. Conversion pipeline: How to convert assembled AsciiDoc to DOCX with fidelity comparable to PDF?

  2. Extension architecture: Can the existing @antora/pdf-extension be reused, or is a separate extension needed?

Decision Drivers

  • Kroki diagram support — diagrams must render in DOCX output

  • Traceability macros — custom item blocks, xrefs, and link macros must survive the conversion

  • Existing infrastructure — reuse the assembler config pattern already established for PDF

  • CI compatibility — the solution must work in GitHub Actions runners (Ubuntu)

  • Regulatory acceptability — output must be a valid .docx with navigable TOC, cross-references, and embedded images

Considered Options

Conversion pipeline

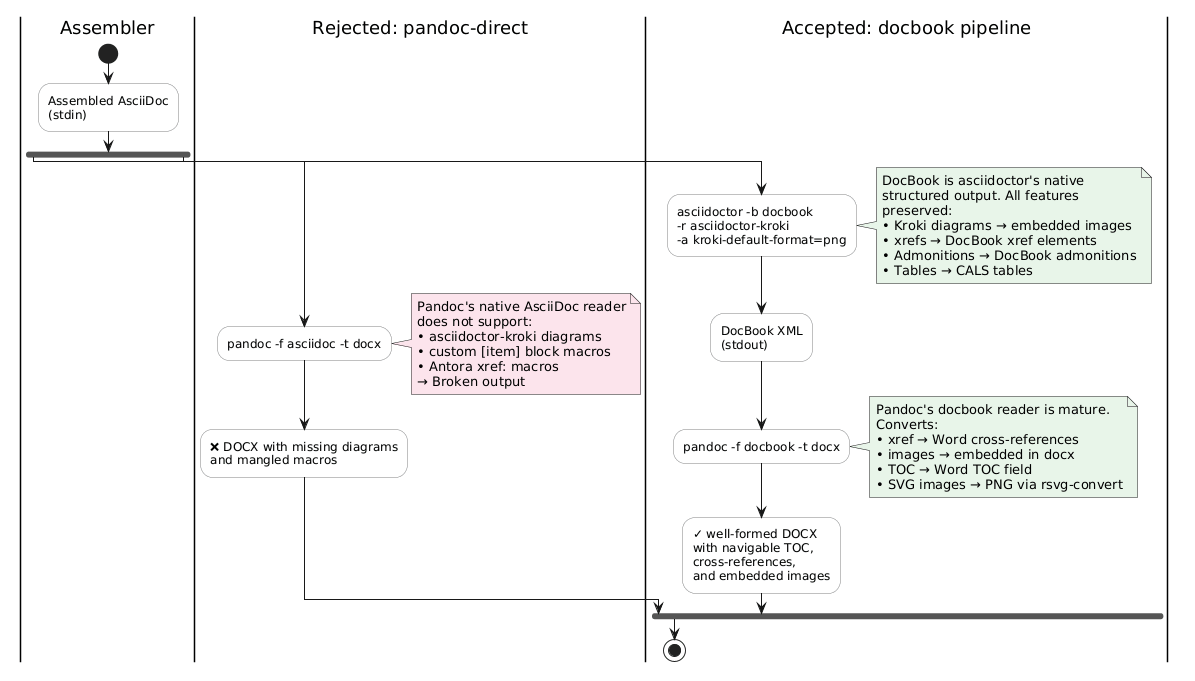

The following diagram compares the two conversion paths — pandoc-direct (rejected) and docbook pipeline (accepted):

docx-pipeline-comparison

Pandoc direct from AsciiDoc (pandoc -f asciidoc -t docx): Pandoc’s native AsciiDoc reader does not support Asciidoctor extensions (Kroki diagrams render as broken links, custom [item] blocks are mangled, xref: macros don’t resolve). Rejected.

Pandoc from HTML (asciidoctor -b html5 | pandoc -f html -t docx): HTML intermediate preserves more features but loses document structure (heading hierarchy, page breaks). Rejected.

LibreOffice headless (soffice --headless --convert-to docx): Requires LibreOffice installation, output quality varies. Rejected.

asciidoctor docbook → pandoc (asciidoctor -b docbook | pandoc -f docbook -t docx): DocBook is asciidoctor’s native structured output format. All AsciiDoc features (xrefs, tables, admonitions, images) are represented. Pandoc’s docbook reader is mature and produces well-formed DOCX. Accepted.

Extension architecture

Reuse @antora/pdf-extension with build.command: ./adoc-to-docx: The PDF extension has backend: 'pdf' and extname: '.pdf' hardcoded in its converter. When the assembler sees a .docx output but backend: 'pdf', it fails with "cannot produce pdf output from docx". Rejected.

Custom Antora extension from scratch: Would implement the full exporter interface. Over-engineered — the assembler already supports arbitrary converters via the command key.

Thin converter + assembler: Create a converter object (antora-docx-converter.cjs) with backend: 'docx' and extname: '.docx', register it via a thin extension (antora-docx-extension.cjs) that calls assembler.configure(). Mirrors the PDF extension’s architecture without the hardcoded backend. Accepted.

Decision Outcome

The DOCX pipeline uses a thin converter + assembler pattern that is format-agnostic:

  • antora-docx-converter.cjs — declares backend: 'docx', extname: '.docx', convert() function

  • antora-docx-extension.cjs — registers the converter with @antora/assembler

  • adoc-to-docx — wrapper script: stdin → asciidoctor -b docbook → pandoc -f docbook -t docx

  • antora-assembler-docx*.yml — assembler configs mirroring PDF profiles, using build.command: ./adoc-to-docx

The pattern is reusable: an epub or html-single format would follow the same structure — write a converter, a wrapper script, and assembler configs.

Positive Consequences

  • Full AsciiDoc feature fidelity — Kroki diagrams, xrefs, admonitions, tables all render correctly

  • Independent from PDF pipeline — DOCX and PDF builds run in parallel with separate build directories

  • CI-ready — pandoc is installed via apt-get, Ruby deps via bundler

  • Pattern documented for future formats

Negative Consequences

  • Two-process pipeline adds build time compared to a single converter

  • Code syntax highlighting is lost (pandoc docbook→docx does not preserve Rouge/Pygments)

  • SVG images require librsvg2-bin for pandoc’s internal rasterization

  • Separate build directories needed (assembler-docx-*) to avoid clashing with PDF builds
